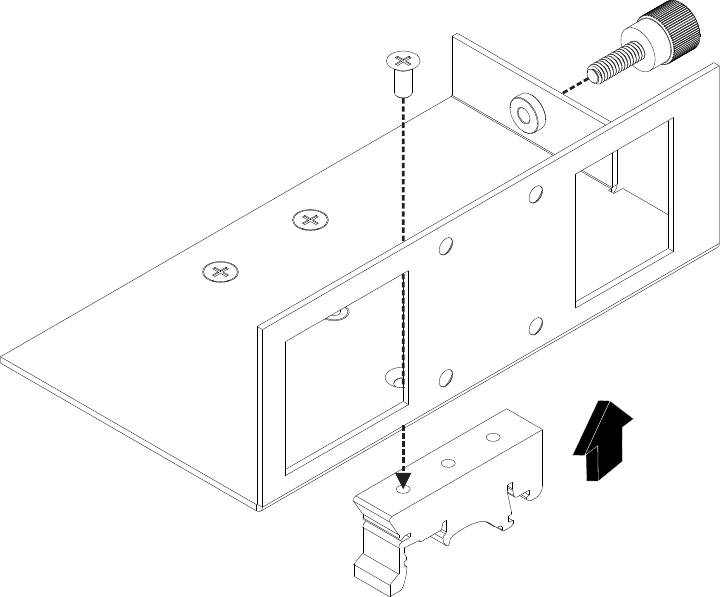

ConfiguringforFlatMounting

Installthe(2)DINRailClipsonthewidesurfaceoftheMountingBracketasshownusing

theFlatHeadScrews

InstalltheNylonRetainingScrewintotothethreadedbushingonthesmalltabas

shown



 
